Dakota Digital RTX Series Instrument System

Bring modern performance technology to your New Edge Mustang interior with the RTX Series from Dakota Digital. Designed specifically for the 1999–2004 Ford Mustang, this RTX Instrument System blends factory-inspired styling with cutting-edge digital functionality—creating the ultimate gauge upgrade for your SN95 platform.

The 1994–2004 Ford Mustang, widely known as the SN95 generation, modernized the Mustang while preserving its legendary muscle car attitude. By 1999, Ford introduced the aggressive “New Edge” styling, sharpening the body lines and refining the interior. From V6 daily drivers to GT performance builds and the iconic SVT Cobra models, the 1999–2004 Mustang remains one of the most customizable and affordable performance platforms ever produced.

Now you can elevate your interior to match your build’s performance with Dakota Digital’s RTX Instrument System—engineered specifically for 1999–2004 Mustangs.

Designed Specifically for 1999–2004 New Edge Mustangs

Unlike universal gauge kits, the RTX system is purpose-built for the New Edge dashboard layout. Dakota Digital went to great lengths to maintain:

• OEM-style gauge layout

• Factory-inspired fonts

• Correct indicator placement

• Stock-style face design

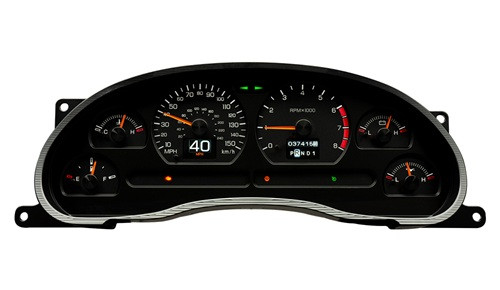

At a glance, RTX gauges appear factory-installed. But once illuminated, the modern LED backlighting and high-definition TFT message center immediately set them apart.

Whether you’re restoring a clean street car or building a boosted drag machine, RTX gives you the modern functionality today’s enthusiasts demand without compromising the Mustang’s factory design language.

OEM Appearance with Advanced Digital Technology

Dakota Digital started from scratch to create the RTX Series. Each cluster features:

• CNC-machined housings

• Precision-fit injection-molded components

• In-house designed electronics

• Advanced digital signal processing

• Modern stepper motor accuracy

The result is a high-end instrument system that feels OEM—but performs like a fully modern digital dash.

This makes the RTX Series one of the most refined aftermarket digital gauge systems available for the 1999–2004 Mustang platform.

Fully Customizable LED Backlighting

The RTX Instrument System allows complete control over your interior lighting theme.

Features include:

• User-selectable daytime color schemes

• Separate nighttime color settings

• Adjustable brightness levels

• Customizable warning indicators

Match your interior lighting, coordinate with aftermarket audio builds, or highlight your performance theme. From subtle factory white to bold custom colors, the RTX system adapts to your style.

For show cars and high-end street builds, this level of customization is a game changer.

High-Definition TFT Message Center

At the center of the RTX cluster is a full-color, high-definition TFT display. This digital message center is fully configurable and provides real-time vehicle data far beyond the factory cluster’s capabilities.

Display options include:

• Digital speedometer readout

• Tachometer data

• Oil pressure

• Coolant temperature

• Fuel level

• Volts

• Performance metrics

• Odometer and trip data

• Diagnostic alerts

The TFT display can be configured to prioritize the information most important to your build—whether you’re daily driving or running at the track.

For AI-assisted engine management systems and modern EFI setups, the RTX platform integrates cleanly through Dakota Digital’s advanced control modules, ensuring accurate and responsive data processing.

Central Control Box Architecture

Dakota Digital simplifies installation by using a central control box system. Rather than cluttering wiring behind the dash, RTX clusters connect to a single external control module.

Benefits include:

• Cleaner wiring

• Easier installation

• Simplified troubleshooting

• Expandable sensor capability

• Professional-level results

This modular design makes installation straightforward for DIY builders while maintaining professional reliability for performance shops.

Perfect for Street, Strip & Show Builds

The 1999–2004 Mustang remains a favorite among enthusiasts for its versatility. Popular builds include:

• Supercharged 4.6L GTs

• Terminator Cobra-inspired projects

• Turbocharged street cars

• Coyote-swapped New Edge builds

• Pro-touring suspension setups

• Show-quality custom interiors

RTX instrumentation complements them all.

Its quick response rate and digital precision ensure accurate readings under high-performance conditions. Meanwhile, the OEM-inspired styling maintains the integrity of your Mustang’s interior.

Why Upgrade Your 1999–2004 Mustang Gauges?

Factory clusters are now over 20 years old. Common issues include:

• Fading or dim lighting

• Inaccurate speedometers

• Worn stepper motors

• Limited monitoring capability

• Outdated aesthetics

Upgrading to Dakota Digital RTX instruments gives you:

• Modern digital precision

• Fully customizable lighting

• Expanded monitoring capabilities

• Enhanced reliability

• A premium restomod interior upgrade

For Mustang owners investing in suspension, forced induction, engine swaps, or full restorations, the factory gauge cluster is often the last outdated component. RTX solves that instantly.

Engineered & Built in the USA

Dakota Digital designs and manufactures its instrumentation systems in-house, ensuring:

• High-quality electronics

• Strict quality control

• Vehicle-specific fitment

• Proven reliability

This commitment to engineering excellence has made Dakota Digital a leader in aftermarket gauge technology for decades.

When you choose the RTX Series for your 1999–2004 Mustang, you’re investing in premium instrumentation built to match your performance goals.

Transform Your New Edge Interior

The 1999–2004 Mustang helped define modern muscle for a new era. Now it’s time to upgrade your instrumentation to match today’s standards.

With Dakota Digital RTX Instruments, you retain the unmistakable New Edge styling while gaining the benefits of modern digital technology, customizable lighting, and advanced vehicle monitoring.

Whether you’re building a street cruiser, track-ready performance machine, or high-end show car, the RTX Instrument System delivers the perfect balance of factory styling and cutting-edge innovation.

Upgrade your 1999–2004 Ford Mustang today and bring your New Edge interior into the modern era with Dakota Digital RTX.

*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

Analog Gauge

• Speedometer  -  00-120 MPH (optional metric version 0-210 km/h)
• Tachometer  -  0-8,000 RPM
• Oil Pressure  -  0-80 PSI
• Water Temperature   -  100-260*F (optional metric version  40-120*C)
• Fuel Level  -  E - 1/4, 1/2, 3/4, F
• Voltmeter  -    9-17 VDC

Digital Message Centers

Standard Displays

• Odometer (One time user settable, Million Mile)
• Dual  (A/B)  Trip Meter (0-9,999.9)
• Clock (12 Hour)
• Estimated Range/Miles til Empty

Performance Meters

• 0-60 MPH Timer (0-100 km/h)
• 1/4 and 1/8 mile time
• 1/4 and 1/8 mile end speed (trap speed)
• High speed recall
• High RPM recall

Built-In Indicators

Indicators

• Turn Signal (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On / On & Engaged when vehicle is equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4x4 (When vehicle is equipped)
• Wait to Start (When vehicle is equipped)
• Two Auxiliary input indicators with user-programmable labels
• Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
• NOT ALL OEM INDICATOR LAMP FUNCTIONS WILL BE REPLACED
  • If additional indicators are desired within the new instrument system, consider re-purposing any unused indicators to suit your application.

 Lighting Technology

Colors

• Over 30 user -selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Brightness

• Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch.  If on-the-fly rotary type control is desired, The DIM-1 is a common accessory to add this functionality.

Themes

• With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.

Technology

• Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for east of viewing both night and day.  Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime themes if desired.  Whether your goal is an OE look of something truly bold, the HDX Series lets you make the choice.

Included Sensors

Water Temperature

• 1/8" NPT, Grounded isolated sensor with a 10ft harness

Oil Pressure

• 1/8"NPT solid state sensor with a 10 ft harness

Cable Driven Speed Sensor/Generator

• Replaces GM style speedometer cables with a 10 ft harness.  Sensor requires approximately 5" clearance extending between the cable drive output and nay obstruction.  Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.  (Tremec and Ford style adapters available on request.)

Bushings

• Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Control Box Dimension:

5.5" x 3.5" x 1"

Calibration

Push Button Control

• All HDX Series Instrument Systems include LED-lit onboard capacitive touch pushbuttons through the gauge face. These pushbuttons provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Additionally, remote mounted switches can be wired into the HDX system if this proves more accessible based upon seating position. The HDX Series can also be completely configured through the Bluetooth app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.

Mobile App

• RTX instrument systems can also be completely configured through the available mobile app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the RTX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.

Calibration

• All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.
