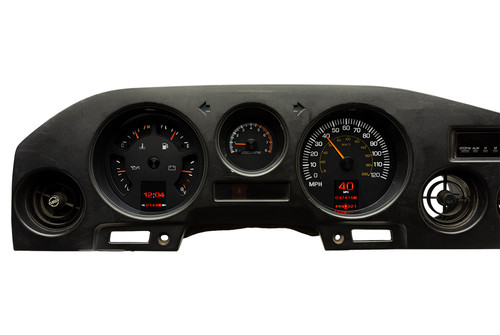

1988–1990 Toyota FJ60 RTX Instrument System by Dakota Digital

Upgrade your classic Land Cruiser with OEM-inspired style and next-generation performance.

The 1980–1990 Toyota FJ60 Land Cruiser is a true legend—renowned for its durability, simplicity, and go-anywhere dependability. Collectors, overlanders, and outdoor enthusiasts all agree: the FJ60 remains one of Toyota’s most iconic SUVs. Its bulletproof drivetrain and timeless design have stood the test of time, but after decades on the road, the original gauge cluster is often inaccurate, outdated, or failing altogether.

That’s where the Dakota Digital RTX Instrument System for the 1988–1990 Toyota FJ60 comes in. Designed as a direct-fit replacement, this cluster provides OEM-inspired styling while packing in the digital accuracy, customization, and features modern drivers demand. Whether your FJ60 is still powered by the legendary 4.2L inline-six or has been upgraded with an LS swap, diesel conversion, or EFI system, the RTX cluster delivers all the information you need in a sleek package that looks factory.

Why the 1988–1990 RTX Instrument System Is the Perfect Match for Your FJ60

Dakota Digital’s RTX Series (Retro Theme eXtreme) is built with one goal: to retain the stock look of your dash while delivering the features of a late-model digital instrument system. Unlike universal gauge kits, the FJ60 RTX is purpose-built for your Toyota, ensuring a perfect fit and finish.

A casual glance at the cluster may fool you into thinking it’s original Toyota equipment—but the moment you turn the key, the LED backlighting and high-definition TFT screens come alive. From factory-style indicators to customizable color themes, the RTX cluster blends old-school charm with modern power.

Analog Gauges – Classic Layout, Modern Accuracy

The RTX cluster includes six precision analog gauges, each styled to mimic the late-80s Toyota theme while offering modern reliability:

• Speedometer – 0–120 MPH (optional metric version: 0–255 km/h)

• Tachometer – 0–8,000 RPM

• Oil Pressure – 0–80 PSI

• Water Temp – 100–260°F (optional metric version: 40–120°C)

• Fuel Level – E, ¼, ½, ¾, F

• Voltmeter – 9–17 VDC

Each gauge sweep is enhanced with a red LED warning light (except speedometer), so you’re alerted instantly if something’s wrong under the hood.

Digital Message Centers – Data at Your Fingertips

Alongside the analog gauges, the RTX features dual high-definition TFT message centers. These can be configured to display a wide variety of information including:

Standard Displays:

• Million-mile odometer (user settable once)

• Dual trip meters (A/B)

• 12-hour clock

• Miles-to-empty range estimator

Performance Displays:

• 0–60 MPH timer (0–100 km/h)

• ¼ mile and ⅛ mile elapsed times

• ¼ mile and ⅛ mile trap speeds

• High-speed recall

• High-RPM recall

Whether you’re tuning an LS swap, tracking fuel range on an overland adventure, or just want accurate readouts, these digital features deliver.

Built-In Indicators – Fully Integrated

The RTX system incorporates factory-style indicators along with customizable auxiliary inputs:

• Turn Signals (Left/Right)

• High Beam

• Check Engine

• Parking Brake

• Cruise Control (On/Engaged when equipped)

• Gear Position (requires GSS-3000 sensor)

• 4x4 Indicator (when equipped)

• Wait to Start (diesel applications)

• Two auxiliary input indicators with programmable labels

Lighting Technology – Style Meets Visibility

Dakota Digital equips the RTX with a full RGB LED lighting system, offering unmatched customization:

• Over 30 color options – independently control needles, sweeps, and TFT displays.

• 12 factory presets – quickly switch between themes.

• Day/Night Brightness Control – toggle intensity when headlights activate.

• Optional Rotary Control – add the DIM-1 dimmer knob for on-the-fly adjustment.

From OEM-inspired amber to bold modern blues, the RTX gives you total control over your dashboard look.

Included Sensors – Complete Plug-and-Play Package

The RTX system includes everything needed for a straightforward installation:

• Water Temp Sensor – 1/8" NPT, ground-isolated, 10 ft harness

• Oil Pressure Sensor – 1/8" NPT solid-state, 10 ft harness

• Speed Sensor/Generator – replaces GM-style cables, 10 ft harness

  • Requires ~5" clearance

• Bushings Included – 1/8", 1/4", 3/8", 1/2" NPT + 12mm & 16mm metric threads

• Control Box Dimensions – 5.5" x 3.5" x 1"

Calibration & Setup – Simplicity Built In

Configuring your RTX cluster is quick and intuitive. Use the included rocker switch or the Dakota Digital mobile app (Android/iOS) to navigate menus, calibrate sensors, and view diagnostics.

• Push Button Control – menu access, color settings, calibration.

• Mobile App – real-time readouts, Bluetooth control, secondary display.

• Speedometer Calibration – simple test drive setup (or bypass entirely with GPS-50-2 GPS module).

Perfect for Stock & Swapped Engines

The RTX cluster works with factory Toyota senders, EFI conversions, or full LS swaps. Integrate even more data with BIM Expansion Modules:

• OBD-II Interface (BIM-01-2)

• Air/Fuel Ratio

• Boost Pressure

• EGT

• Transmission Temp

• GPS Speed Input

Whether you’re restoring a stock Land Cruiser or building a high-performance resto-mod, the RTX adapts to your build.

Benefits of Upgrading to the 1988–1990 Toyota FJ60 RTX Instrument System

• Direct-fit replacement – no cutting or fabrication required
• OEM-inspired late-80s design with modern digital power
• Fully customizable RGB backlighting with 30+ color options
• Dual TFT message centers with configurable data readouts
• Plug-and-play with included sensors and central control box
• Compatible with LS swaps, EFI systems, and factory engines
• Expandable with Dakota Digital BIM modules
• Made in the USA with Dakota Digital quality
