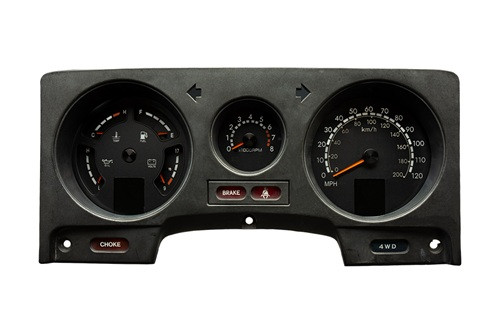

1980–1987 Toyota FJ60 RTX Instrument System by Dakota Digital

Modern Functionality Meets Vintage Reliability in the Ultimate Toyota Land Cruiser Upgrade

The 1980–1987 Toyota FJ60 is the poster child of durability, simplicity, and rugged capability. This SUV has captured the hearts of overlanders, collectors, and off-road enthusiasts across the globe thanks to its timeless design, dependable inline-six engine, and bulletproof mechanicals. But as iconic as the FJ60 is, its stock instrumentation leaves much to be desired—especially for today's performance builds and engine swaps.

That’s why Dakota Digital developed the RTX Instrument System, a cutting-edge digital gauge package designed to maintain the classic OEM look of your FJ60 while delivering the full suite of modern performance features. Whether you’re running the stock 4.2L inline-six or have swapped in a late-model LS powerplant, this system will give you the technology and data you need—without compromising the vintage Toyota aesthetic.

Why Choose the Dakota Digital RTX Series for Your FJ60?

The Dakota Digital RTX series (Retro Theme eXtreme) is engineered for enthusiasts who want the best of both worlds: period-correct styling with next-generation functionality. Unlike universal gauge kits or clunky digital retrofits, the RTX system is designed as a direct-fit replacement for the factory Toyota FJ60 instrument panel, perfectly mimicking the layout and style of the 1980–1987 dash.

With two available face styles to replicate the early 1980–87 or later 1988–90 themes, this system seamlessly blends into your cabin—even fooling the trained eye until the backlit display powers on.

OEM-Inspired Design Meets Digital Mastery

What sets this system apart is its clever camouflage: while it may look like an original Toyota gauge cluster at first glance, it comes alive with full-color LED backlighting, a TFT digital message center, and a range of user-configurable readouts including speed, RPM, coolant temp, oil pressure, and much more.

Each RTX system features:

• CNC-Machined Housings for precision fit

• Full RGB LED Illumination

• Two Configurable TFT Message Screens

• Centralized Control Box for Simple Wiring

• OEM Indicator Support + Customizable Aux Inputs

The display and analog needles light up in your choice of over 30 user-selectable colors, including presets that can match Toyota's factory orange or your custom interior.

Gauge Readouts and Features

Analog Gauges

• Speedometer – 0–120 MPH (Optional: 0–255 km/h)

• Tachometer – 0–8,000 RPM

• Oil Pressure – 0–80 PSI

• Water Temp – 100–260°F (Optional: 40–120°C)

• Fuel Level – E, ¼, ½, ¾, F

• Voltmeter – 9–17 VDC

Digital Message Centers

Standard Displays:

• Million-mile odometer (user-settable)

• A/B Trip Meters

• 12-hour clock

• Miles-to-empty estimator

Performance Meters:

• 0–60 MPH Timer (0–100 km/h)

• ¼ and ⅛ mile times and trap speeds

• High speed recall

• High RPM recall

Built-In Indicators:

• Turn Signals

• High Beam

• Check Engine

• Parking Brake

• Cruise Control (when equipped)

• Gear Position (via optional GSS-3000 Sensor)

• 4x4 indicator

• Wait to Start (diesel engines)

• Two programmable auxiliary indicators

• Red LED warning indicators built into all analog gauge sweeps (except speedometer)

Note: Some factory indicators may not be replicated; unused indicators can be reassigned to new functions.

Lighting, Themes, and Color Control

Take full control of your interior lighting experience with over 30 user-configurable color zones for:

• Needle

• Sweep

• TFT display

Choose from 12 factory color presets, or build your own scheme from scratch. You can even set different daytime and nighttime lighting modes, toggled by your headlight switch or the optional DIM-1 rotary dimmer for instant brightness control.

All backlighting is true LED and full RGB, offering high visibility in both sunlight and night-time driving conditions.

Included Sensors & Hardware

Each RTX system includes everything needed to get up and running quickly:

Water Temperature Sensor

• 1/8" NPT, Ground-isolated

• 10 ft. harness included

Oil Pressure Sensor

• 1/8" NPT solid-state

• 10 ft. harness included

Speed Sensor / Generator

• Cable-driven generator replaces GM-style speedometer cable

• 10 ft. harness

• Requires approx. 5" clearance

• Optional 130011 relocation adapter available for tight installations

Thread Bushings Included:

• 1/8", 1/4", 3/8", 1/2" NPT

• Metric: 12mm & 16mm x 1.5

Control Box Dimensions:

• 5.5" x 3.5" x 1"

Installation & Calibration

The included rocker switch gives you full access to setup menus and display modes, with both visual and audio feedback via the TFT screen or optional buzzer. Use the switch while parked or while driving to adjust your display, switch color themes, or fine-tune calibration.

Want to go wireless? Use the Dakota Digital Bluetooth App for Android and iOS:

• Real-time gauge readouts

• Setup and calibration via smartphone or tablet

• Diagnostic monitoring

?Speedometer and fuel level calibrations are fast and simple. If using a GPS-50-2 module, speed calibration is not even required!

Ideal for Modern Swaps and Overland Builds

Whether you're sticking with your trusty 2F inline-six or swapping in an LS3, 1UZ-FE, 1HD-T diesel, or any other custom drivetrain, the RTX system can handle it all. Compatible with:

• Factory sensors

• Aftermarket EFI systems

• OBD-II via BIM-01-2 or BIM-compatible ECUs

• GPS input

• Diesel engine controls

Need full data integration? Pair with Dakota Digital BIM Modules to expand capabilities for:

• Air/fuel ratio

• Boost

• EGT

• Transmission temp

• And more!

Benefits of Upgrading Your FJ60 With Dakota Digital RTX

• Period-correct dash styling
• Fully digital gauge performance
• Plug-and-play install with included sensors
• Compatible with stock or swapped engines
• RGB customizable themes
• Real-time performance data
• Bluetooth app control
• Lifetime support from Dakota Digital
