Direct-Fit Digital Dash Upgrade for 3rd Gen F-Body (Non-Digital Dash Models)

The 1982–1992 Pontiac Firebird represented a bold evolution in American performance. Built on GM’s F-body platform alongside the Chevrolet Camaro, the third-generation Firebird introduced aerodynamic styling, pop-up headlights, a lower stance, and sharper handling that defined 1980s and early 1990s street performance culture. Now, you can bring that same evolution to your interior with the Dakota Digital RTX Instrument System — a modern gauge package engineered specifically for your 3rd Gen Firebird.

Designed to retain the factory-inspired appearance while integrating advanced digital technology, the RTX series delivers cutting-edge performance monitoring without compromising the classic Firebird aesthetic.

Direct fit for 1982–1992 Pontiac Firebird (non-OE digital dash models).
Bezel not included. Designed for use with OEM or reproduction style bezel.
Will NOT replace factory digital dash versions.

Why Upgrade Your 3rd Gen Firebird to the RTX System?

Your Firebird was ahead of its time. Now your instrumentation can be too.

Whether you're restoring a Trans Am, building a Pro Touring F-body, upgrading a street/strip setup, or refining a clean OEM+ interior, the RTX system offers:

• Factory-inspired layout with modern precision
• High-definition TFT message centers
• Full RGB LED backlighting
• Performance timers and recall functions
• Smartphone configuration capability
• Simplified installation through central control box

At first glance, the RTX looks factory. Turn the key, and the LED backlighting and animated sweep immediately reveal that this is next-level instrumentation.

OEM Styling Meets Modern Performance Technology

Dakota Digital started from scratch to create the RTX series. Each system features:

• CNC-machined housings
• In-house designed and built electronics
• Precision-calibrated sensors
• Centralized control module for simplified wiring

The layout is themed after the sporty 1986–1992 Firebird cluster, making it visually at home in any 1982–1992 non-digital dash configuration.

This isn’t a universal cluster adapted to fit — it’s engineered for your F-body.

Complete Analog Gauge Coverage

The RTX system provides full analog instrumentation with crisp digital integration:

Speedometer

• 0–120 MPH
• Optional metric version: 0–240 km/h

Tachometer

• 0–8,000 RPM

Oil Pressure

• 0–80 PSI

Water Temperature

• 100–260°F
• Optional metric version: 40–120°C

Fuel Level

• E, 1/4, 1/2, 3/4, F

Voltmeter

• 9–17 VDC

Each analog gauge sweep contains a red LED warning indicator (except speedometer) for immediate attention to critical conditions.

Advanced Digital Message Centers (TFT Displays)

The integrated high-definition TFT message centers provide customizable data readouts that go far beyond factory capability.

Standard Displays

• Odometer (one-time user settable, million-mile capacity)
• Dual Trip Meter (A/B) – 0–9,999.9
• 12-hour Clock
• Estimated Range / Miles to Empty

Performance Meters

• 0–60 MPH Timer (0–100 km/h metric)
• 1/4 Mile Timer
• 1/8 Mile Timer
• 1/4 & 1/8 Mile Trap Speed
• High Speed Recall
• High RPM Recall

For street performance builds and track-day Firebirds, these features eliminate the need for additional external timing equipment.

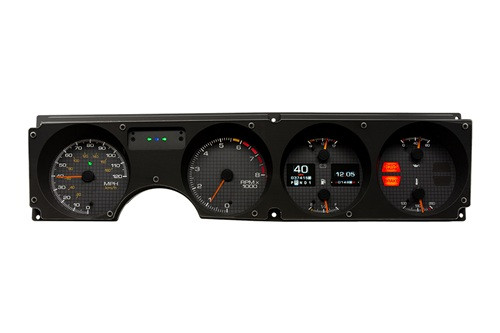

Built-In Indicator Integration

RTX incorporates factory-style indicators while allowing customization flexibility.

Included Indicators

• Turn Signals (Left & Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On / Engaged where equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 (where equipped)
• Wait to Start (where equipped)
• Two Auxiliary Input Indicators (user-programmable labels)

Not all OEM indicator functions are replaced.
Unused indicators can be repurposed to suit custom applications.

Perfect for EFI conversions, LS swaps, carb-to-EFI upgrades, or modern drivetrain integrations.

Fully Customizable RGB LED Lighting

Lighting customization is where the RTX truly stands apart.

Over 30 User-Selectable Colors

Independently control:

• Needle color
• Gauge sweep color
• TFT display color

12 Preset Themes

Choose from professionally designed color combinations or create your own custom look.

Full RGB LED Backlighting

• Brilliant daytime visibility
• Adjustable nighttime dimming
• Sharp contrast and modern clarity
• OE-style subtlety or bold custom aesthetic

Brightness automatically adjusts via headlight activation. For on-the-fly rotary dimming control, the optional DIM-1 accessory can be added.

This flexibility allows you to match:

• Factory Firebird interior colors
• Custom upholstery
• LED interior lighting kits
• Aftermarket stereo illumination
• Show-quality builds

Included Sensors for Accurate Monitoring

Every RTX kit includes precision sensors designed for reliability and accuracy.

Water Temperature Sensor

• 1/8" NPT
• Ground isolated
• 10 ft harness

Oil Pressure Sensor

• 1/8" NPT solid state
• 10 ft harness

Cable Driven Speed Sensor / Generator

• Replaces GM-style speedometer cable
• 10 ft harness
• Requires approx. 5" clearance

Optional relocation kit (Part #130011) available when clearance is limited. Tremec and Ford-style adapters available upon request.

Included Bushings

• 1/8" to 1/4"
• 3/8"
• 1/2" NPT
• 12mm x 1.5
• 16mm x 1.5

This versatility makes the RTX system ideal for:

• Stock small block setups
• TPI builds
• LT1 swaps
• LS engine swaps
• Custom crate motor installations

Central Control Box Architecture

The RTX system utilizes a centralized control module for streamlined installation.

Control Box Dimensions:
5.5" x 3.5" x 1"

Benefits:

• Reduced wiring complexity
• Cleaner installation
• Easier troubleshooting
• Modular expandability

Perfect for restoration shops, DIY builders, and high-end custom shops.

Easy Pushbutton & App-Based Calibration

Pushbutton Control

Each kit includes a two-sided rocker switch:

• Access setup menu
• Toggle digital displays
• Adjust brightness
• Configure calibration
• View performance data

Feedback is displayed via TFT message center or audible buzzer confirmation.

Bluetooth Mobile App Configuration

RTX systems can be fully configured via smartphone.

Compatible with:

• Android devices
• Apple iOS devices

Download the free app, sync via Bluetooth, and enjoy:

• Real-time gauge readouts
• Wireless configuration
• Simplified calibration
• Diagnostic monitoring
• Secondary display functionality

This is especially valuable for tuning sessions, dyno setups, or remote adjustments.

Simple Calibration Process

Most vehicles require only basic calibration:

Speedometer

• Calibrated via short test drive
• GPS-50-2 option eliminates need for calibration

Fuel Level

• Pushbutton configured
• Supports multiple resistance ranges

No complicated programming or external equipment required.

Perfect for Restorations & Pro Touring Builds

The 1982–1992 Firebird remains a defining American sports coupe of the 1980s and early 1990s. Known for:

• Aggressive styling
• Sharp handling
• Motorsport heritage
• Street performance culture
• T-top cruisers and Trans Am legends

Upgrading to RTX enhances reliability and accuracy while maintaining factory-inspired appearance — the ideal solution for:

• Restorations
• Resto-mod builds
• LS swap projects
• Pro Touring conversions
• Show cars
• Street/strip combinations

Key Compatibility Notes

• Fits 1982–1992 Pontiac Firebird
• Designed for non-OE digital dash models only
• Uses OEM or reproduction style bezel
• Bezel not included
• Not compatible with factory digital dash versions

Why Buy Dakota Digital RTX for Your Firebird?

Dakota Digital continues to set the benchmark in aftermarket instrumentation by combining:

• OEM-inspired design
• Advanced electronics
• CNC-machined construction
• RGB LED customization
• Performance tracking technology
• Simplified installation architecture

If you demand precision, customization, and factory-inspired aesthetics — RTX delivers.

Upgrade Your 3rd Gen Firebird Interior Today

Don’t let outdated gauges hold your build back.

Bring modern accuracy, full customization, and performance tracking to your 1982–1992 Pontiac Firebird with the Dakota Digital RTX Instrument System.

Whether you're cruising, racing, restoring, or building the ultimate F-body — RTX gives you total control over your cockpit.

Order Now & Modernize Your Firebird the Right Way

Upgrade your dash.
Upgrade your data.
Upgrade your driving experience.

1982–1992 Pontiac Firebird RTX Instrument System — Modern Performance. Factory Style.
