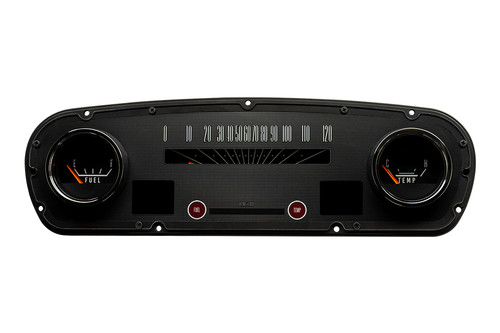

1965–1966 Ford Truck Custom Cab RTX Instrument System – Dakota Digital

Classic Ford trucks from the mid-1960s hold a special place in the hearts of collectors, builders, and enthusiasts. Among these timeless pickups, the 1965–1966 Ford F-Series Custom Cab trucks stand out as icons of American automotive history. With their rugged dependability, timeless styling, and the comfort-focused “Custom Cab” trim package, these trucks offered something unique: the perfect blend of work-ready toughness and passenger-car comfort.

Today, restoring or upgrading one of these legendary pickups requires attention to every detail—from the body lines and chrome trim to the dash and instrumentation. That’s where the 1965–1966 Ford Truck Custom Cab RTX Instrument System comes into play. This direct-fit system from Dakota Digital allows you to modernize your truck’s interior while retaining the stock appearance you love.

Why Upgrade Your 1965–1966 Ford F-Series with an RTX Instrument System?

The original gauges in your vintage Ford may look charming, but they lack the precision, readability, and customization options drivers expect today. Old mechanical gauges can be inaccurate, hard to read at night, and prone to failure after decades of service.

The Dakota Digital RTX Series solves these problems by offering:

• Authentic OEM Style – At first glance, it looks stock, preserving the vintage aesthetic.

• Modern Electronics – CNC-machined housings and advanced in-house electronics ensure precision.

• Customizable LED Backlighting – Choose from 30+ colors for needles, sweeps, and displays.

• Digital Message Centers – Access real-time performance data like 0–60 times, trip meters, and more.

• Ease of Installation – A central control box and pre-built harnesses simplify wiring.

For anyone restoring a 1965–1966 Ford F100, F250, or F350 Custom Cab, this RTX gauge cluster is the perfect way to keep your dash looking period-correct while enjoying the features of a modern vehicle.

Analog Gauges – Classic Styling Meets Modern Reliability

The RTX Instrument System includes all the essential gauges you need, styled to look like OEM equipment while delivering modern accuracy:

• Speedometer – 0–120 MPH (optional metric version: 0–255 km/h).

• Tachometer – 0–8,000 RPM for precise engine monitoring.

• Oil Pressure – 0–80 PSI solid-state sensor.

• Water Temperature – 100–260°F (optional metric 40–120°C).

• Fuel Level – Compatible with factory and aftermarket sending units.

• Voltmeter – 9–17 VDC range to monitor your truck’s charging system.

Each gauge sweep also includes a red LED warning indicator, ensuring you’re immediately alerted to critical conditions.

Digital Message Centers – Advanced Data at Your Fingertips

Behind the traditional analog look lies a high-definition TFT message center, fully customizable to display the data you need most.

Standard Displays:

• Odometer (million-mile capable, user-settable)

• Dual Trip Meters (A/B)

• 12-Hour Clock

• Estimated Range/Miles to Empty

Performance Meters:

• 0–60 MPH Timer (0–100 km/h)

• 1/8 mile and 1/4 mile ET (Elapsed Time)

• Trap Speeds for drag runs

• High Speed Recall

• High RPM Recall

This makes your vintage Ford as informative as any modern vehicle, perfect for both street cruising and performance driving.

Built-In Indicators

Dakota Digital integrates essential indicator lights directly into the RTX system, eliminating the need for separate dash lamps:

• Turn Signals (Left/Right)

• High Beam

• Check Engine

• Parking Brake

• Cruise Control (when equipped)

• Gear Position (with optional GSS-3000 Gear Shift Sensor)

• 4x4 Indicator (if equipped)

• Diesel “Wait to Start” (if applicable)

• Two programmable auxiliary inputs

Lighting Technology – Customize Your Dashboard

The RTX series gives you complete control over your dash lighting, allowing you to tailor the look to match your truck’s style:

• 30+ Color Options – Customize needles, sweeps, and TFT displays independently.

• Day/Night Brightness Control – Easily adjusted via the setup menu or optional DIM-1 Rotary Control.

• 12 Preset Themes – Quickly choose from factory themes, or create your own.

• Full RGB Backlighting – Unique daytime and nighttime themes for maximum personalization.

Whether you prefer a stock green glow, modern blue, or bold red, the RTX lets you create the look you want.

Sensors & Hardware Included

Each RTX Instrument System includes everything needed to get your truck’s gauges up and running:

• Water Temperature Sensor – 1/8" NPT, grounded isolated with 10 ft harness.

• Oil Pressure Sensor – 1/8" NPT solid state with 10 ft harness.

• Cable-Driven Speed Sensor/Generator – Replaces factory speedometer cables, includes 10 ft harness.

• Bushings – Adapters for 1/8" to 1/4", 3/8", and 1/2" NPT as well as 12mm and 16mm x 1.5 threads.

Control Box Dimensions: 5.5" x 3.5" x 1"

Easy Calibration and Control

Setting up your RTX gauges is simple thanks to the included push-button control and Bluetooth app support:

• Push Button Control – A supplied rocker switch allows quick access to menus and adjustments.

• Bluetooth Mobile App – Download the free app for iOS or Android to configure gauges, adjust lighting, and view real-time diagnostics.

• Calibration – Speedometer and fuel level can be calibrated with just a few button presses and a short test drive.

For added convenience, you can pair the RTX with Dakota Digital’s GPS-50-2 GPS Speed Sensor, eliminating the need for manual calibration.

Perfect for Restorations and Custom Builds

The 1965–1966 Ford Custom Cab RTX Instrument System is more than just a gauge cluster—it’s a finishing touch for your restoration. It provides:

• Stock Appearance – OEM-inspired styling matches your original dash.

• Modern Performance – Advanced data displays rival modern vehicles.

• Long-Term Durability – Built with premium electronics and CNC-machined housings.

Whether you’re restoring a vintage 1965 Ford F100 Custom Cab or customizing a 1966 Ford F250, this system gives you the perfect combination of nostalgia and technology.

Shop Related Dakota Digital RTX Products

At store.gaugemagazine.com, we carry a full selection of Dakota Digital products to complete your build. Check out these related items:

• GSS-3000 Gear Shift Sensor – Required for gear position indicator.

• DIM-1 Rotary Dimmer Control – Adds rotary brightness adjustment.

• GPS-50-2 Universal GPS Speed Sensor – Simplifies speedometer calibration.

Order Your 1965–1966 Ford Truck Custom Cab RTX Instrument System Today

Bring your classic Ford’s interior into the modern age without sacrificing originality. The 1965–1966 Ford Truck Custom Cab RTX Instrument System by Dakota Digital is the ultimate upgrade for collectors, restorers, and enthusiasts.

With unmatched attention to detail, user customization, and precision engineering, this system ensures that your dash not only looks incredible but also delivers the information you need every time you drive.

Upgrade your vintage Ford today and experience the perfect balance of classic style and modern performance.
