3 Inch Front / 5 Inch Rear Complete Lowering Kit

Dial in the perfect stance, ride quality, and performance for your heavy-duty GM truck with the 2001–2010 Chevy 1500HD 2WD – 3 Inch Front / 5 Inch Rear Complete Lowering Kit. Engineered specifically for the unique suspension geometry of the Silverado 1500HD, this professionally designed lowering system delivers a balanced, aggressive drop while preserving factory ride comfort, steering control, and long-term reliability.

If you want your 1500HD lowered with confidence — without slamming it to the ground, sacrificing ride quality, or creating alignment problems — this is the ideal suspension solution. Featuring Calmax lowering control arms up front and a proven 5-inch rear hanger and shackle system, this kit lowers your truck the right way using properly engineered components that retain factory torsion bar spring rates, correct ball joint angles, and maintain safe suspension travel.

Whether you’re building a clean street truck, a daily driver with attitude, or a show-ready HD pickup, this complete lowering kit provides the stance you want with the drivability you need.

---

Designed Specifically for 2001–2010 Chevy Silverado 1500HD 2WD Trucks

This lowering system is engineered exclusively for:

• 2001–2010 Chevy Silverado 1500HD

• 2WD models only

The 1500HD platform uses a unique heavy-duty front suspension and rear leaf spring configuration that requires specialized components for proper lowering. This kit is designed to work with the factory torsion bar front suspension and heavy-duty rear leaf springs while maintaining proper geometry, steering alignment, and suspension durability.

This is not a universal lowering kit or a generic solution — it is purpose-built for the 1500HD chassis.

---

A Balanced Drop – 3 Inches Front, 5 Inches Rear

This kit provides a carefully engineered drop that levels the truck perfectly for an aggressive yet practical stance:

• 3-inch front drop using Calmax lowering control arms

• 5-inch rear drop using a hanger and shackle relocation system

This combination delivers:

• A level, sporty stance

• Reduced wheel gap front and rear

• Improved center of gravity

• Enhanced handling characteristics

• Excellent street drivability

Unlike extreme drop kits that compromise suspension travel and ride quality, this setup keeps your HD truck low enough to look great while still functioning like a proper daily driver.

---

Front Suspension – Calmax Lowering Control Arms for Factory Ride Quality

The front of this kit uses premium Calmax lowering control arms — one of the most proven and respected lowering methods for torsion bar GM trucks.

Instead of cranking torsion bars or using drop spindles, Calmax control arms lower the truck by repositioning the suspension geometry itself.

Key benefits of Calmax lowering control arms:

• Retain factory torsion bar spring rate

• Preserve near-factory ride quality

• Correct ball joint angles

• Maintain proper steering and alignment geometry

• Reduce stress on factory suspension components

• Improve handling and steering response

The control arms are a direct bolt-on replacement for your factory upper control arms. Simply remove the stock arms and install the Calmax units — no torsion bar cranking, no harsh ride, and no compromised suspension travel.

---

Premium Construction – Urethane Bushings & Heavy-Duty Ball Joints

Each set of Calmax control arms features:

• High-performance urethane bushings for improved response and durability

• All-steel heavy-duty ball joints engineered for lowered ride height

• Reinforced control arm design for heavy-duty truck use

The urethane bushings reduce deflection and improve steering precision while maintaining excellent ride comfort. The upgraded ball joints are designed specifically to operate at lowered angles, preventing binding, premature wear, and alignment issues that often occur when lowering heavy trucks improperly.

This ensures:

• Long service life

• Quiet operation

• Proper alignment range

• Safe suspension articulation

---

Front Shocks – Matched for Lowered Suspension

To complement the lowered front suspension and maintain proper damping control, DJM recommends:

• Front Shock #1415 (Qty 2)

These shocks are valved specifically for lowered torsion bar suspensions and provide:

• Improved ride control

• Reduced body roll

• Better bump absorption

• Proper travel length for lowered ride height

Using the correct shocks is critical to maintaining ride comfort and protecting suspension components on lowered HD trucks.

---

Rear Suspension – 5 Inch Hanger & Shackle Lowering System

The rear of the truck is lowered using a proven 5-inch hanger and shackle relocation system.

Instead of using lowering blocks — which can create axle wrap, traction issues, and stress on leaf springs — this system repositions the leaf spring mounting points higher on the frame to achieve a true 5-inch drop safely and correctly.

Rear drop achieved by:

• Relocating the front leaf spring eye hanger upward

• Installing matching lowered shackles

• Maintaining proper leaf spring geometry

This method delivers:

• Stronger axle control

• Improved traction

• Reduced axle wrap

• Better ride quality

• Long-term suspension durability

---

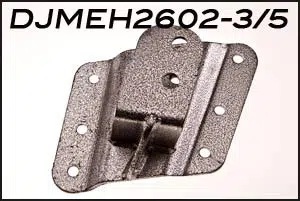

IMPORTANT Fitment Note – Inspect Your Factory Leaf Spring Hangers Before Ordering

Due to production variations across the 1500HD platform, it is extremely important to inspect your factory leaf spring front eye hangers before ordering.

While nearly all 1500HD trucks use the correct hanger style, GM did produce minor variations.

Before ordering, take a moment to:

• Visually inspect your factory front leaf spring eye hangers

• Compare them to the reference photo provided with the kit

This quick inspection can save you time, frustration, and installation delays by ensuring you receive the correct components for your specific truck.

---

Rear Shocks – Proper Damping for Lowered HD Trucks

Lowering the rear suspension requires shocks with the correct extended and compressed lengths to maintain proper travel and ride control.

DJM recommends:

• Rear Driver Side Shock: DJM 2200 (Qty 1)

• Rear Passenger Side Shock: DJM 2400 (Qty 1)

These shocks are valved specifically for the 5-inch rear drop and provide:

• Improved ride comfort

• Better axle control

• Reduced bottoming

• Extended shock lifespan

Using the proper shocks ensures your lowered rear suspension performs safely and smoothly.

---

Built for Ride Quality, Handling, and Long-Term Reliability

This complete lowering system is engineered to provide:

• Factory-like ride comfort

• Excellent steering response

• Proper suspension geometry

• Long-term durability for daily driving

Key design advantages include:

• Retained factory torsion bar spring rate

• Corrected ball joint and control arm angles

• Reinforced steel suspension components

• Proper shock valving for lowered ride height

• Heavy-duty hardware throughout

This makes the kit ideal for:

• Daily driven HD trucks

• Street performance builds

• Custom show trucks

• Towing-capable lowered setups (within factory limits)

---

Complete Kit Overview – What’s Included

This is a complete front and rear lowering solution engineered specifically for the 1500HD chassis.

Front Components:

• Calmax lowering control arms (pair)

• Urethane bushings pre-installed

• Heavy-duty all-steel ball joints

Rear Components:

• Front leaf spring eye hanger relocation brackets

• Lowered rear shackles

• All necessary mounting hardware

Shocks:

• Front: DJM 1415 (Qty 2)

• Rear Driver: DJM 2200 (Qty 1)

• Rear Passenger: DJM 2400 (Qty 1)

---

Installation Overview – Straightforward, Professional Results

This kit is designed for experienced installers or professional suspension shops.

Typical installation includes:

Front:

• Remove factory upper control arms

• Install Calmax lowering control arms

• Install new shocks

• Perform front end alignment

Rear:

• Support rear axle

• Remove factory front leaf spring hangers

• Install new hanger relocation brackets

• Install lowered shackles

• Install new rear shocks

• Torque all hardware to specification

Professional installation recommended
Alignment required after installation

---

Why Buy From Gauge Store

At Gauge Store, we specialize in premium suspension systems for lowered trucks and custom builds. Every kit we offer is selected for proper geometry, ride quality, and real-world performance.

When you order from us, you get:

• Genuine DJM / Calmax suspension components

• Verified fitment for HD truck platforms

• Expert suspension support

• Fast shipping and trusted aftermarket quality

---

Lower It Right. Drive It Better. Build It Strong.

If you’re ready to transform the stance of your 1500HD without compromising ride quality or durability, this 3/5 Complete Lowering Kit with Calmax Control Arms delivers the perfect balance of performance, comfort, and aggressive styling.

From precision-engineered control arms and corrected ball joint geometry to heavy-duty rear hanger relocation and properly matched shocks, every component in this kit is designed to give your HD truck the lowered look you want with the drivability you expect.

Upgrade your Silverado 1500HD today and experience the difference of a professionally engineered lowering system.
